Fester Knotenzaun
High Tensile Fixed Knot Fence for Efficient Management
Fixed Knot Fence, also called field fence, farm fence, cattle fence, horse fence, steel deer fence, grassland fence, sheep and goat fence. It provides enough safety for cattle sheep and horse, and also against fierce striking of cattle, horse, goats, and even wild deer. So, the knotted type staylock deer fence usually used as hunting fencing. Besides, staylock deer fence is also a good fencing material for grassland and farms.
- Height Range: 0.6 to 2.45 meter available;
- Vertical wire distance: 50, 100, 150, 200, 250, 300, 350, 400mm available;
- Length: 50 Meters, 100 Meters and 150 Meters available;
- Wire Material Finishing: Hot Dipped Galvanized, Electro Galvanized;
- Clip: Steel V type wire;
- Post: Y or T post
- Packing: In wooden pallet or in bulk.
*For larger quantity orders call for special pricing.
Technical Specifications - Fixed Knot Wire Fence
General technical information
- Material: Heavy galvanized mild steel carbon wire with extremely high tensile strength, a green PVC coated finish or other treatment also offered.
- Horizontal wires: 2.50 mm, Tensile
- strength: 1200–1400 N/mm2
- Vertical wires: 2.50 mm, Tensile
- strength: 820–970 N/mm2
- Node wires: 2.24 mm, Tensile
- strength: 400–550 N/mm2
- Zinc coating: 230–350 g/m2.
Fixed Knot Fence Sizes
Number | Number of | Height of fence | Space between | Wire gauge | Rollengröße |
1 | 13 | 48 inch | 3 inch | 12 – 1/2 | 48 inch high × 200ft. long |
2 | 13 | 48 inch | 6 inch | 12 – 1/2 | 48 inch high × 300ft. long |
3 | 9 | 49 inch | 6 inch | 12 – 1/2 | 49 inch high × 330ft. long |
4 | 9 | 49 inch | 12 inch | 12 – 1/2 | 49 inch high × 330ft. long |
5 | 10 | 60 inch | 6 inch | 12 – 1/2 | 60 inch high × 330ft. long |
6 | 15 | 61 inch | 3 inch | 12 – 1/2 | 61 inch high × 200ft. long |
7 | 15 | 61 inch | 6 inch | 12 – 1/2 | 61 inch high × 330ft. long |
8 | 17 | 75 inch | 6 inch | 12 – 1/2 | 75 inch high × 330ft.long |
9 | 14 | 78 inch | 6 inch | 14 | 78 inch high × 330ft. long |
10 | 16 | 90 inch | 6 inch | 14 | 90 inch high × 330ft. long |
11 | 20 | 96 inch | 3 inch | 12 – 1/2 | 96 inch high × 165ft. long |
12 | 20 | 96 inch | 6 inch | 12 – 1/2 | 96 inch high × 330ft. long |
13 | 20 | 96 inch | 12 inch | 12 – 1/2 | 96 inch high × 330ft. long |
14 | 23 | 120 inch | 6 inch | 12 – 1/2 | 120 inch high × 330ft. long |
How Zinc Aluminum Works
Zinc Aluminum coating can last up to three times the life of zinc galvanized coating of the same thickness.
BARRIER Protection
Physically defends steel from air and moisture.
GALVANIC Protection
Reacts with corrosive elements to protect steel wire, even when the coating is cut or scratched.
PAINT Protection
Enhances aesthetics on fence.
Produktvorteile
High strength steel wire to withstand the violent impact of deer and other animals.
Galvanized steel material is corrosion and rust resistance even in extremely harsh outdoors.
Strong fixed knot design is durable and long lifespan.
Small spacing on the bottom can prevent small animals form chewing or digging in.
3″, 6″ and 12″ wire spacing satisfy all your needs.
6′ to 8′ height for different security purpose.
Extra strong bottom and top wires to resist predator penetration.
Smooth surface without any sharp edge will not hurt deer.
Webarten
S knot (Square Deal Knot)
S knot (Square Deal Knot) fencing has S-shaped knots that are made by fixing a single wire to the intersecion of two wires, horizontal and vertical, to strengthen the intersection. This type of field fence can withstand the impact of large animals, suitable for cattle and sheep farming.
Hinge Joint (Monarch knot)
Hinge Joint Field Fencing with hinged joints are formed by winding verical wires around horizontal wires. This construction can withstand a lot of pressure and can spring back to its orginal shape quickly after an impact. Each ioint is made by winding the two verical wires individually around the horizontal wires, resulting in greater strength and flexibility.
Fixed knot (Cross Lock knot)
Fixed Knot (Cross Lock Knot) field fence has a unique construction, using a single metal wire to form a strong knot to hold the horizontal and vertical wires together. The fence is extremely strong and can be installed quickly with fewer posts. Reduces installation and maintenance costs.
Fence Posts
Y-shaped fence posts are designed for field fencing, crafted from cast iron for superior strength and corrosion resistance compared to traditional wooden stakes. Featuring small holes for easy wire threading to secure fencing mesh and a pointed tip for effortless ground insertion, these posts ensure quick and hassle-free installation—perfect for agricultural and livestock applications.
Key Features:
Heavy-Duty Construction – Cast iron material resists rust and weathering for long-lasting performance.
Einfache Installation – Spiked base allows quick and stable placement into the ground.
Secure Fastening – Pre-drilled holes enable simple wire attachment for sturdy fence assembly.
Upgrade to Y-Posts for a stronger, more reliable fencing system!
Related Hot Selling Products
-
Square Knot Fence has s-shaped knots to form a tough & sturdy structure that stands up to impact from large animals without buckling or sagging. It is a type of anti climbing fence, suitable for goat, sheep and cattle keeping, commonly known as S knot fence.
-
High Tensile Hinge Joint Fence combines a flexible hinge joint knot design with protective zinc-coated fencing to create a rust-proof, weather-resistant product that stands the test of time.
-
Viehzäune sind robuste, hochfeste Stahlzaunelemente für sichere Viehgehege. Langlebig, wetterbeständig und einfach zu montieren. Ideal für Rinder, Pferde und andere Großtiere.
-
Pferdezaunelemente sind Rundrohr-Zaunlösungen aus verzinktem Stahl oder pulverbeschichteten Materialien. Sicher, langlebig und einfach zu installieren – perfekt für Paddocks, Ställe und Weiden.
Produktanwendungen

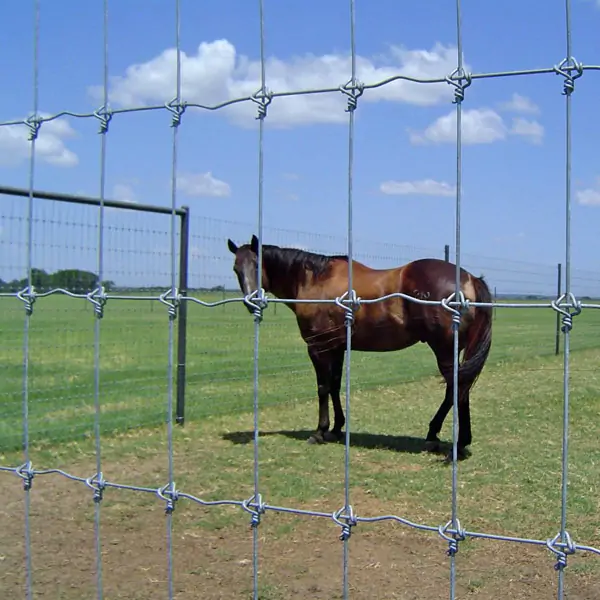

This fixed knot is the strongest steel fence type on today’s market to keep deer and other pests out of gardens. It is also commonly used by farmers and ranchers to keep livestock in. Commercial fields such as vineyards, orchards and hemp farms also use this fencing to protect their crops. This material is also the best choice for protection solar fields.
Common Uses: Agricultural Livestock Deer Exclusion Garden Exclusion Vineyard Orchard Solar Fields
Fordern Sie noch heute ein kostenloses Muster an!
Qualifikationsnachweis
Quality of all YESON Products is Guaranteed.
Longevity.
Made from high quality, Class 3 Galvanized wire.
Strength.
Strong knotting that prevents wire from slipping.
Stability.
Continuous vertical wires provide sag-proof vertical integrity.
Low-Maintenance.
Saving time and money.
Häufig gestellte Fragen
Kann ich zur Fabrikinspektion nach China kommen?
Selbstverständlich können Sie unsere Fabrik oder unsere Büros in verschiedenen Städten jederzeit besuchen. Jetzt unterstützen wir auch ZOOM oder WeChat für die Online-Fabrikinspektion.
Kann ich vorab ein Muster zur Überprüfung erhalten?
Ja, wir bieten Ihnen Rohstoffproben oder kleine Probebestellungen zur Prüfung an. Teilen Sie unseren Spezialisten einfach die Details mit, und sie helfen Ihnen gerne weiter.
Sind Sie ein Handelsunternehmen oder ein Hersteller?
Wir sind eine Fabrik mit fast 30 Jahren Erfahrung in der Produktion und mehr als 25 Jahren Erfahrung im Export.
Wie lange ist Ihre Lieferzeit?
Im Allgemeinen beträgt die Lieferzeit 7 Tage, wenn die Ware auf Lager ist. Bei OEM-Ware beträgt sie 30–40 Tage, abhängig von der Menge.
Wie kann ich den Fortschritt meiner Bestellung verfolgen?
Produktions- und Verpackungsfotos werden bereitgestellt und vor dem Laden mit Ihnen bestätigt.
Was ist das wichtigste Merkmal Ihrer Produkte?
Da wir über ein unabhängiges Designteam (mehr als 10 Mitglieder) verfügen, akzeptieren wir alle Formen der individuellen Anpassung. Sie geben uns einfach Ideen oder auch nur ein Wort, und wir können Ihr ideales Produkt für Ihren Markt herstellen.
